- 5500 lb. lifting capacity with overload protection
- 3000 lb. carrying capacity
- 25 HP diesel engine
- 42 ft. sheave height
- Insulated to 46 KV category C
- Full continuous rotation and unlimited work zone
- Auger stored on side of boom
- Hydraulic Pole Guide
- Hydraulic adjustment of track drive
- Positive +80º boom elevation to -10º boom elevation
- Fully proportional remote control
- Stable to 20º side slope
- Pressure and flow adjustable hydraulic tool circuit
- Remote Drive
- Bucket (44 ft. working height)
- Hydraulic tools

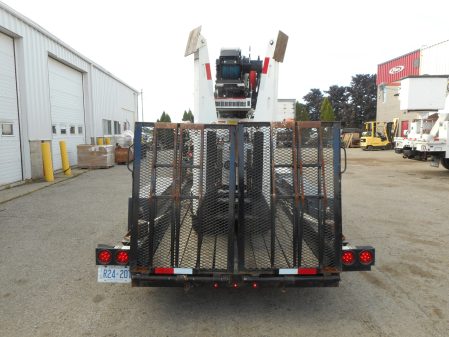

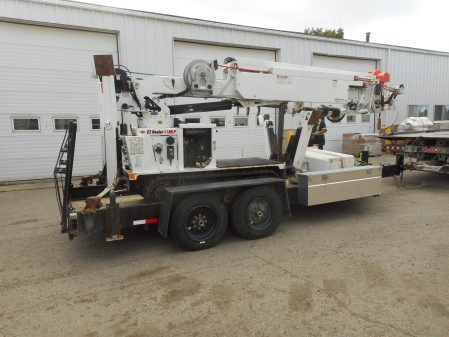

- Custom-built transporter trailer
- Transformer/ Jib Winch
GENERAL SPECIFICATIONS
- Engine: Yanmar Mnimax, 3 Cylinder, Water cooled 1640 cc Diesel 25 HP @ 3600 RPM. Fully tier IV compliant
- Hydraulic Pump: Fixed displacement gear type, 14 gallons (53 liters) per minute
- Hydraulic track drive with skid steering
- Hydraulically extended tracks
- 41 ft.(12.5 M) boom to tip height
- Full 360 degree continuous rotation
- 5500 lb. (1725 kg) lifting capacity
- Fully proportional remote for crane and drive functions
- Meets or Exceeds ANSI A92.2-2001, A10.31-2006, and SAE Requirement
- Meets 46kv category C dielectric qualifications
DIMENSIONS
- Length — Overall, length, including crane, is 17ft. (5.2M). Chassis length is 10′ – 6″(3.2M).
- Length with outriggers fully extended is 13′ – 6″(4.1M)
- Width — Overall, width of the tracks extended is 51″ (132cm). Width without the tracks extended is 35.5″ (90cm).
- Width with the outriggers fully extended is 11ft (3.35M).
- Height — Overall, height, including crane, is 6′ – 10″ (2.1M). Chassis height is 47″ (103cm).
- Height with the outriggers fully extended is 62″ (124.44cm).
OTHER FEATURES
- Pin on bucket with 300 lb. (135kg) capacity – 44 ft. (13.4M) working height
- Crawler tracks – Rubber 12′ (30 cm) wide, five idler wheels on each side.
- Crawler Drive Motors – Integrated orbit hydraulic motor with single stage planetary drive gear.
- Transport Bed – 47″L x 35.5″W (124cm L x 90cm W), Capacity: 3000 lbs. (1135kg)
- Controls: Wireless Radio Remote
- Main Boom: 80 degree about to -10 degree below horizontal hydraulic boom elevation
- Extensions: Three hydraulically operated steel sections and one manually extended fiberglass section with hydraulic pole guide.
- Winch line, equipped with 9/16″ 100ft. (12m) polyester ropes.
- Auger: stored on side of boom with latching mechanism for transport
- Auger Drive: Sealed planetary gear reduction – 3500 ft. /lbs. (3745 N-M) torque. (5000 ft./lbs. optional)
- Auger Bit: 18″ (46 cm) diameter standard with 2″ hex output shaft. (2.5″ optional)
