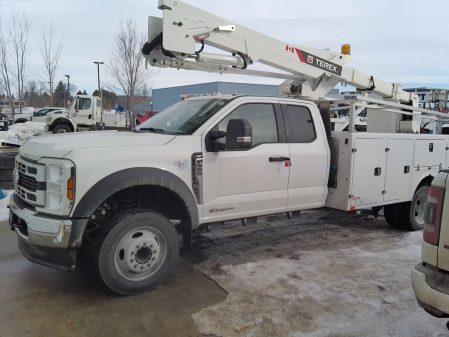

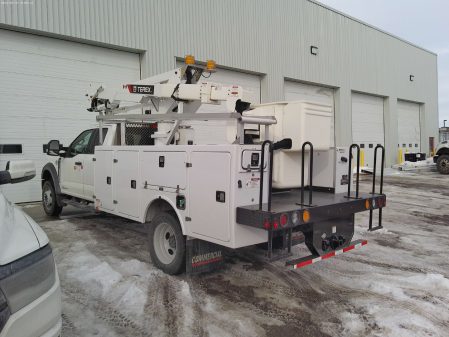

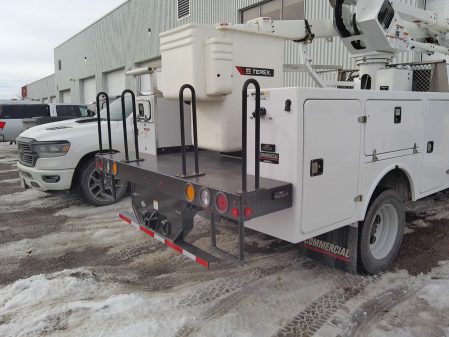

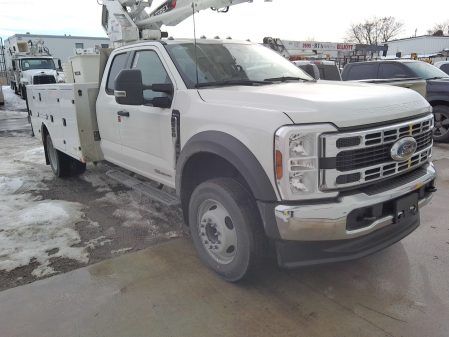

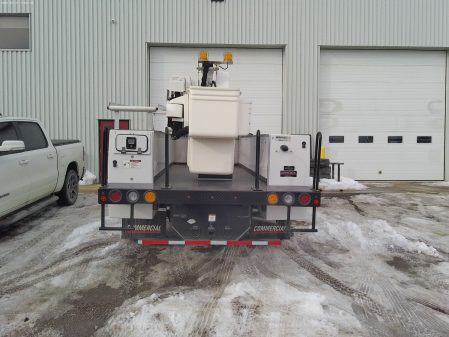

The Terex Hi-Ranger LT trouble truck features a simple compact design for easy maneuverability. The LT is typically mounted on a Class 5 truck chassis offering 29 feet of side reach and a maximum platform capacity of 400 lbs. The LT40 is available with an end-mount boom tip configuration and Category ‘C’ rating per ANSI A92.2.
SPECIFICATIONS
- Working height of 45.6 feet (13.8 meters)
- Horizontal side reach of 29.4 feet (9 meters) with outriggers
- Maximum platform capacity of 400 pounds (181 kg)
- Category ‘C’ 46 kV Rating Per ANSI A92.2
- Full Pressure Controls on Side of Platform
- Platform Tilt Control at Upper and Lower Controls
- Platform Rotation at Upper Controls
- Hydraulic Platform Leveling
LINE BODY
- Brand FX 108” Fiberglass Body
CHASSIS
- Ford F550 4×4 Super Cab
- 7L 4V OHV Power Stroke V8 Turbo Diesel
- TorqShift 10-Speed Automatic
- GVWR: 8,845 kgs (19,500 lbs)
- Extra Heavy-Duty Front-End Suspension – 7,500 GAWR
